Vacuum Circulating Emulsification Tank

Product Description

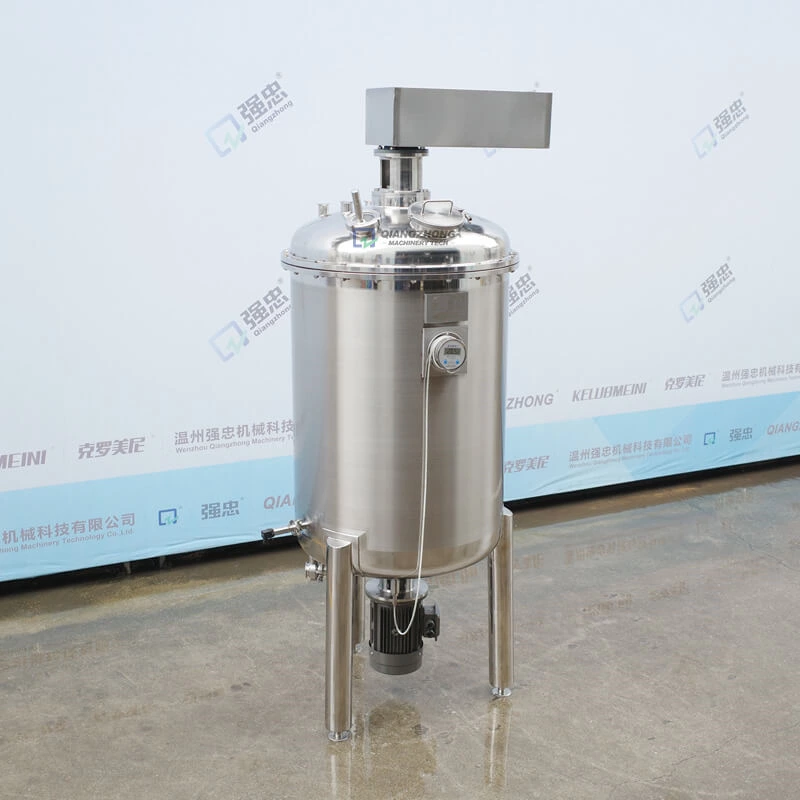

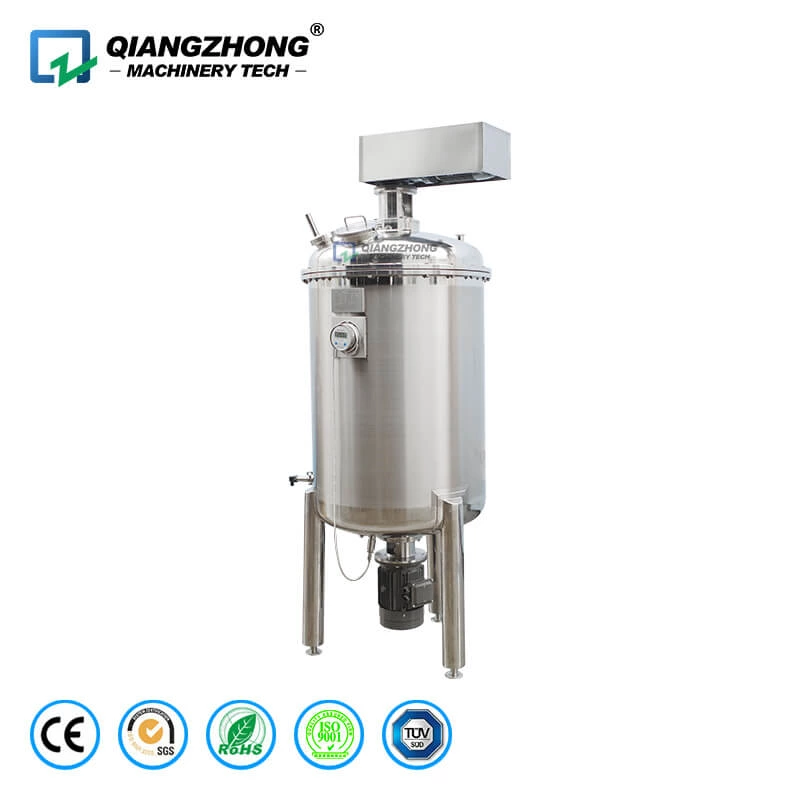

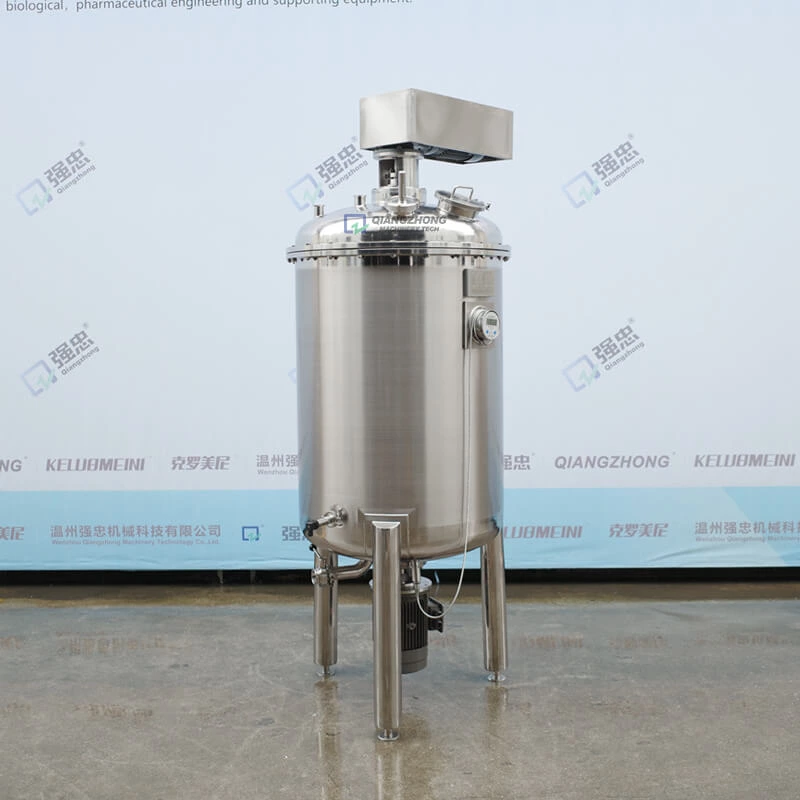

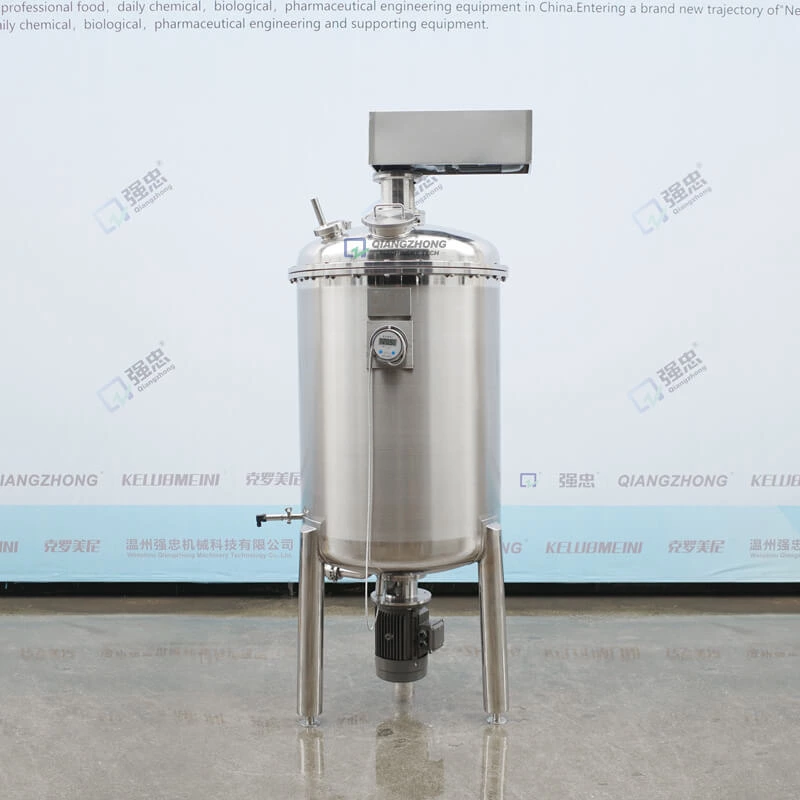

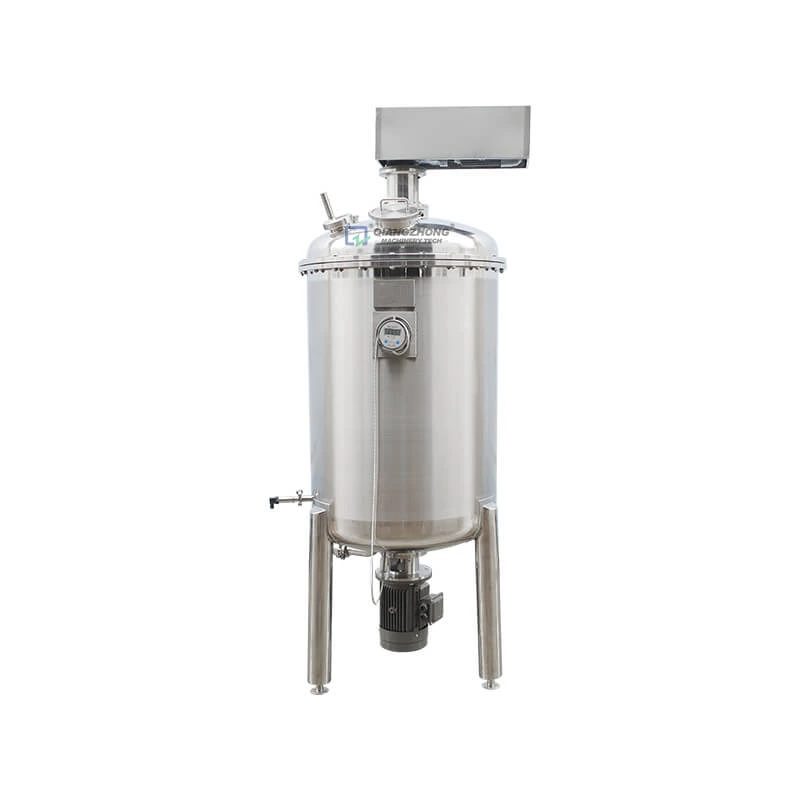

The main part of the vacuum circulating emulsification tank includes the tank body and the high-shear emulsification head, and the main material is stainless steel 304 or 316L. It is composed of a transmission system, an emulsification stirring system, a tank body, a heating jacket (optional) and a tank body supporting part. The inner and outer surfaces of the tank are treated with mirror polishing. A jacket or insulation layer can be added to the tank body, and the jacket can be heated or cooled by steam, heat transfer oil, and water.
The vacuum emulsification tank is a sanitary equipment with a fully enclosed vertical structure, a wide range of uses, and various working conditions. Through the combination of the high-speed rotating shearing wheel of the emulsifier and the static shearing wheel, it can fully and rapidly mix, emulsify and homogenize the mixed liquid and the mixture in the tank. It has the functions of heating, cooling, heat preservation and emulsification, and is widely used in dairy, food, biological engineering, beverage, fruit wine, daily chemicals, pigments, oils and other industries.

Application

The emulsification tank is suitable for cosmetics, medicine, food, chemistry, dyeing, printing ink and other industries. It is especially effective for the preparation and emulsification of materials with high matrix viscosity and relatively high solid content.
(1) Cosmetics: creams, lotions, lipsticks, shampoos, etc.
(2) Medicines: ointments, syrups, eye drops, antibiotics, etc.
(3) Food: jam, butter, margarine, etc.
(4) Chemicals: chemicals, synthetic adhesives, etc.
(5) Dyed products: pigments, titanium oxide, etc.
(6) Printing ink: color ink, resin ink, newspaper ink, etc.
(7) Others: pigments, waxes, paints, etc.

Working Principle

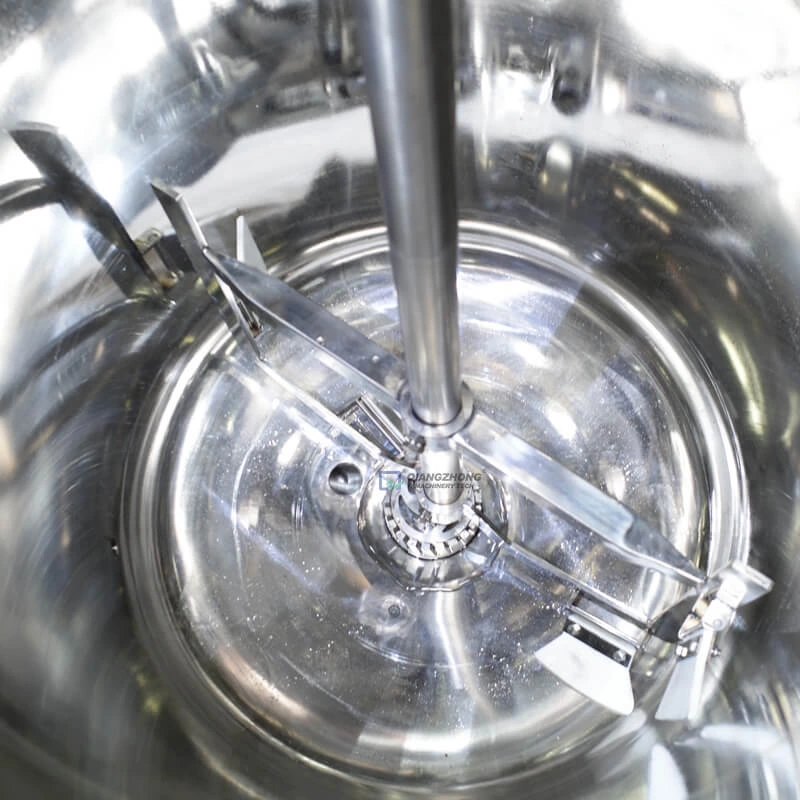

Its working principle is that the centrifugal force generated by the high-speed and strong rotating rotor of the emulsifying head throws the material into the narrow and precise gap between the stator and the rotor from the radial direction. The materials are simultaneously subjected to centrifugal extrusion and impact forces to be dispersed, mixed and emulsified. The tank has the advantages of humanized structure, customizable volume, easy operation, safety and hygiene, and stable operation. It integrates high-speed shearing, dispersion, homogenization and mixing.

Other

1.Technical file support: random provide equipment drawings (CAD), the installation drawing, the product quality certificate, installation and operating instructions, etc.

2.For your Detailed description and drawings, please send us inquiry and request!

3.Send an inquiry to obtain Manuals and Videos for detailed operation instruction and Advice on optimize work process.
