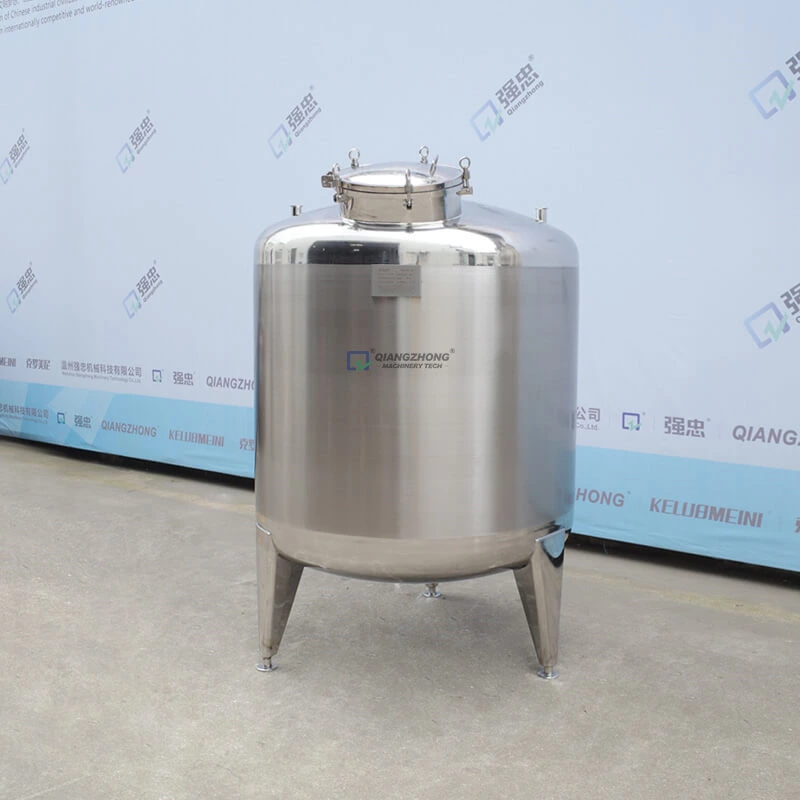

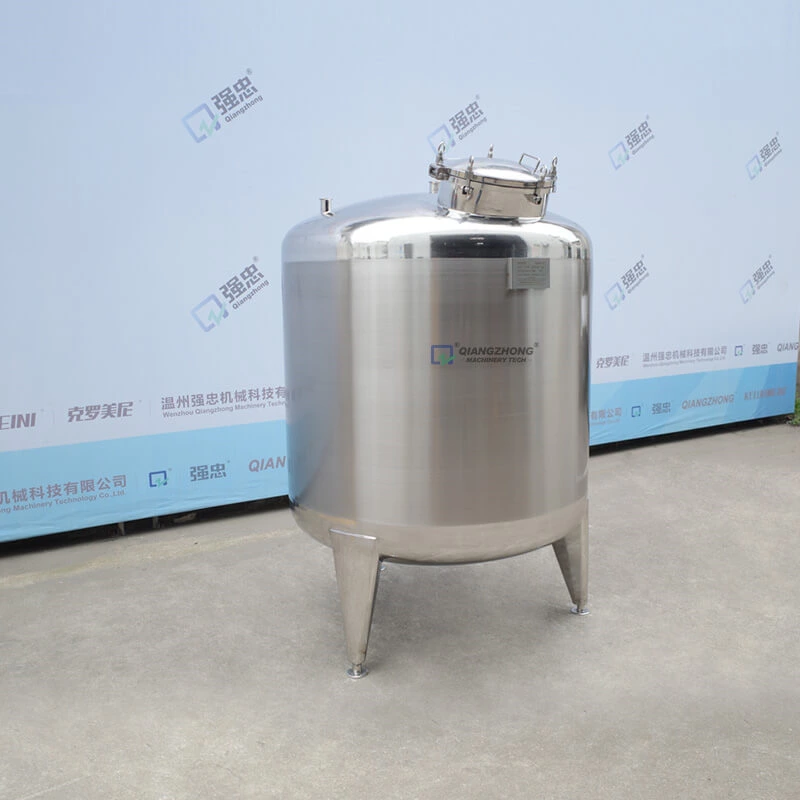

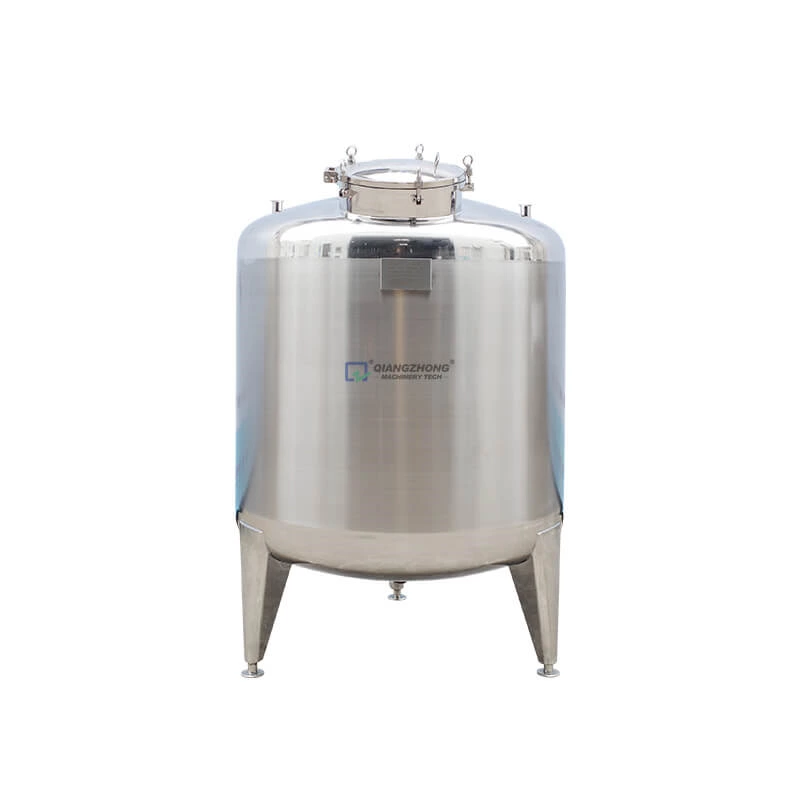

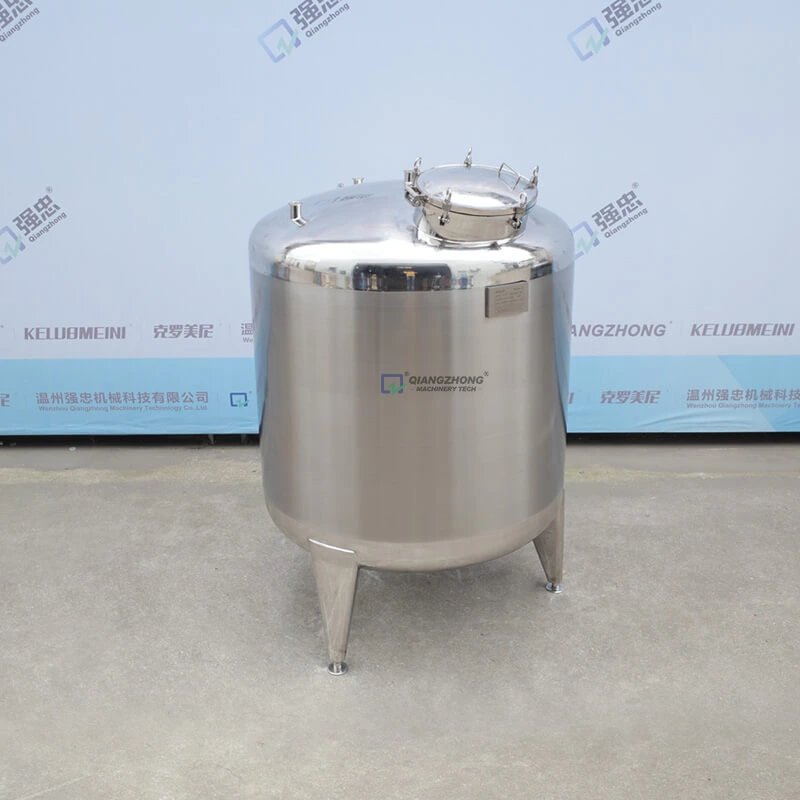

Storage Tanks are usually designed with vertical round tank body with standard elliptical or butterfly upper head and standard conical, butterfly or elliptical bottom head. The internal wall transitions are all arc-shaped, no dead corner, easy to clean. Available structures are single-walled, double-walled (with insulation on the tank body and the bottoms) or jacket (with jacket and insulation on the tank body and the bottoms), customers could choose them for combination. Inner surface is mirror polished, suitable for CIP and SIP, complying with food sanitation requirements.
Tank structure is usually vertical type or horizontal type with mechanical mixer, while also could be square, round or other shapes according to customer requirements.
Aseptic air filter, thermometer (digital or dial type), pressure gauge, sight glass, sanitary manhole, liquid inlet and outlet, CIP swivel ball, level gauge, etc., or other accessories according to customer requirements.
Widely applicable to store pure water, injection water and liquid medicine, and also intermediate buffering in the pharmaceutical industry. It is also suitable for storage of milk, fruit juice and other materials in food and beverage industry at normal atmospheric temperature and heated temperature.
Tank capacities available range from 100L to 20,000L, which could be designed and manufactured according to actual needs of customers.
Insulation materials are rock wool or polyurethane
With quick chuck interface, inner body is made of SUS304 or SUS316L stainless steel (optional), inner surface is mirror-polished Ra≤0.28μm～0.6μm. Outer surface can be polished, brushed, sandblasted or others according to customer requirements.
1.Technical file support: random provide equipment drawings (CAD), the installation drawing, the product quality certificate, installation and operating instructions, etc.
2.For your Detailed description and drawings, please send us inquiry and request!
3.Send an inquiry to obtain Manuals and Videos for detailed operation instruction and Advice on optimize work process.
